Waste Aluminum Shredder

The waste Aluminum Shredder is widely used in shredding scrap aluminum alloy, scrap engine, scrap radiator, broken bridge aluminum, water tank, copper wire,and other scrap metal materials.

We can customize waste aluminum crushing and recycling production line for you

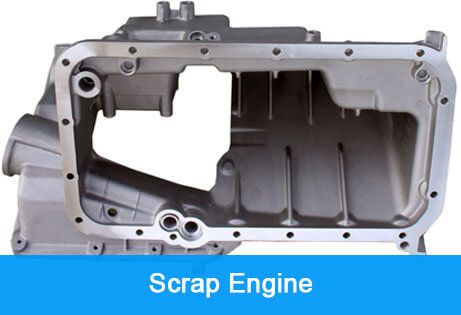

Materials Suitable for Crushing

The waste aluminum shredder is mainly used for crushing scrap copper and aluminum, increasing its bulk density for transportation and recycling.

This equipment is widely used in shredding scrap aluminum alloy, scrap radiator, broken bridge aluminum, scrap engine, water tank, copper wire,and other scrap metal materials.

Features of Waste Aluminum Crushing and Recycling Production Line

1. This production line has been researched by our company for many years, combined with the actual situation of the country, the processing process has lower metal loss compared with similar production line technology at home and abroad, reduces the number of broken times, and ensures that materials are separated in the maximum state, thereby reducing metal loss. The production of powder improves the efficiency of recycling.

2. The primary crushing adopts a double-shaft shredder, which adopts a two-shaft double-roller design, which has low noise, high torque, and can crush large-volume radiators.

3. The vertical crusher has strong crushing capacity. It can easily crush the materials in the water tank by one-time crushing. It does not need to remove iron in advance. The hammer head is made of alloy material, and the service life is more than one year.

4. High degree of automation, only 2-3 staff are needed on the whole line.

5. The dust collection system is equipped in the treatment process, which effectively controls the dust overflow.

6. The sorting adopts two-stage specific gravity sorting to improve the sorting accuracy, and the purity of the sorted copper, iron and aluminum is >99%.

Process Flow of Waste Aluminum Crushing Recycling Production Line

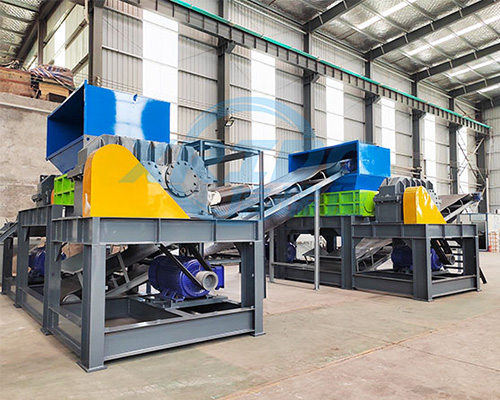

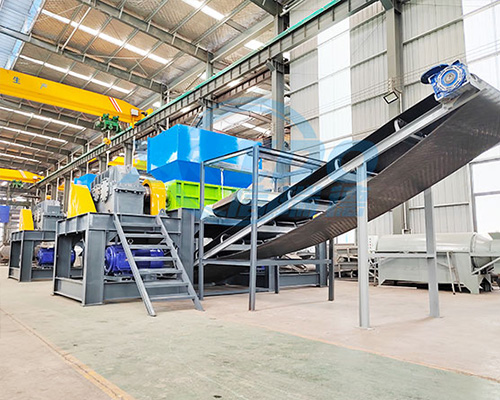

The material is sent to the double-shaft shredder through the conveyor for primary crushing. The double-shaft shredder squeezes and tears the material into small pieces, and then sends it to the vertical crusher through the conveyor for secondary crushing. , the hammer crusher fully dissociates the material fragments, squeezes and kneads them into high-density pellets, and the broken small particles are separated from the iron in the material by a magnetic separator, and the remaining copper and aluminum enter the specific gravity Sorting machine, for fine sorting, sorting out the remaining copper, aluminum and other impurities.

Waste Aluminum Shredder Parameter

Model

Dimensions (mm)

Shredding Room(mm)

blade(mm)

Electric(k)

Weight(kg)

XD-600

2800×1300×1850

600×480

200

11×2

2200

XD-800

3000×1300×1850

800×480

200

15×2

2500

XD-1000

3300×1900×2200

1000×690

300

22×2

5200

XD-1200

3600×2000×2200

1200×690

300

30×2

6400

XD-1500

4180×2100×2400

1500×850

550

55×2

9000

XD-1800

5800×2400×3300

1800×1206

550

75×2

13600

XD-2000

6400×2700×3500

2000×1490

600

90×2

20100

XD-2500

7500×3200×3800

2500×1800

600

110×2

25000
