Air SeparatorAir SeparatorAir Separator
Air SeparatorAir SeparatorAir Separator

Air Separator

Capacity: 100-500 tons

Applicable: Light material as;shopping bag, weaving bag, paper chip;  Heavy material(mixed materials with large differences of density and specific gravity).





Working Principle

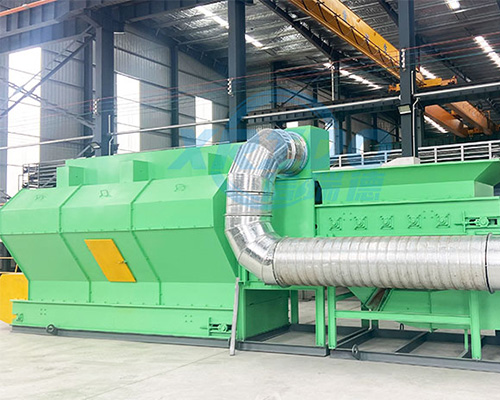

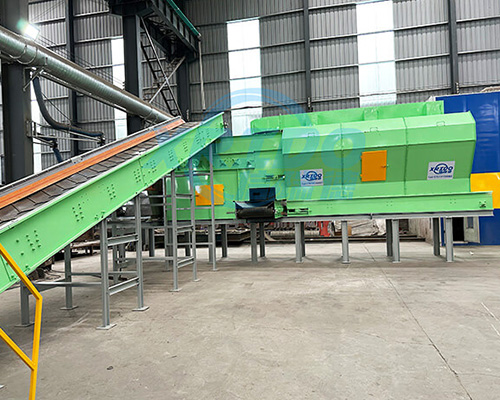

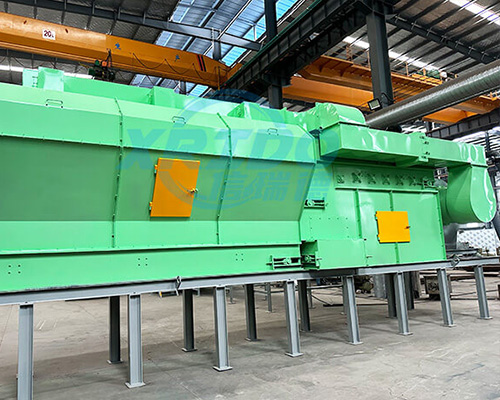

Air separator machine is mainly used to the aerodynamics, the light material, middle material and heavy material will be sorted out under the positive and negative air pressure. light materials will be taken up or horizontally into the settling tank, then discharged by the belt conveyor.

The heavy material is down to the conveyor for the upward air pressure can not bear the weight, they will be discharged by conveyor.

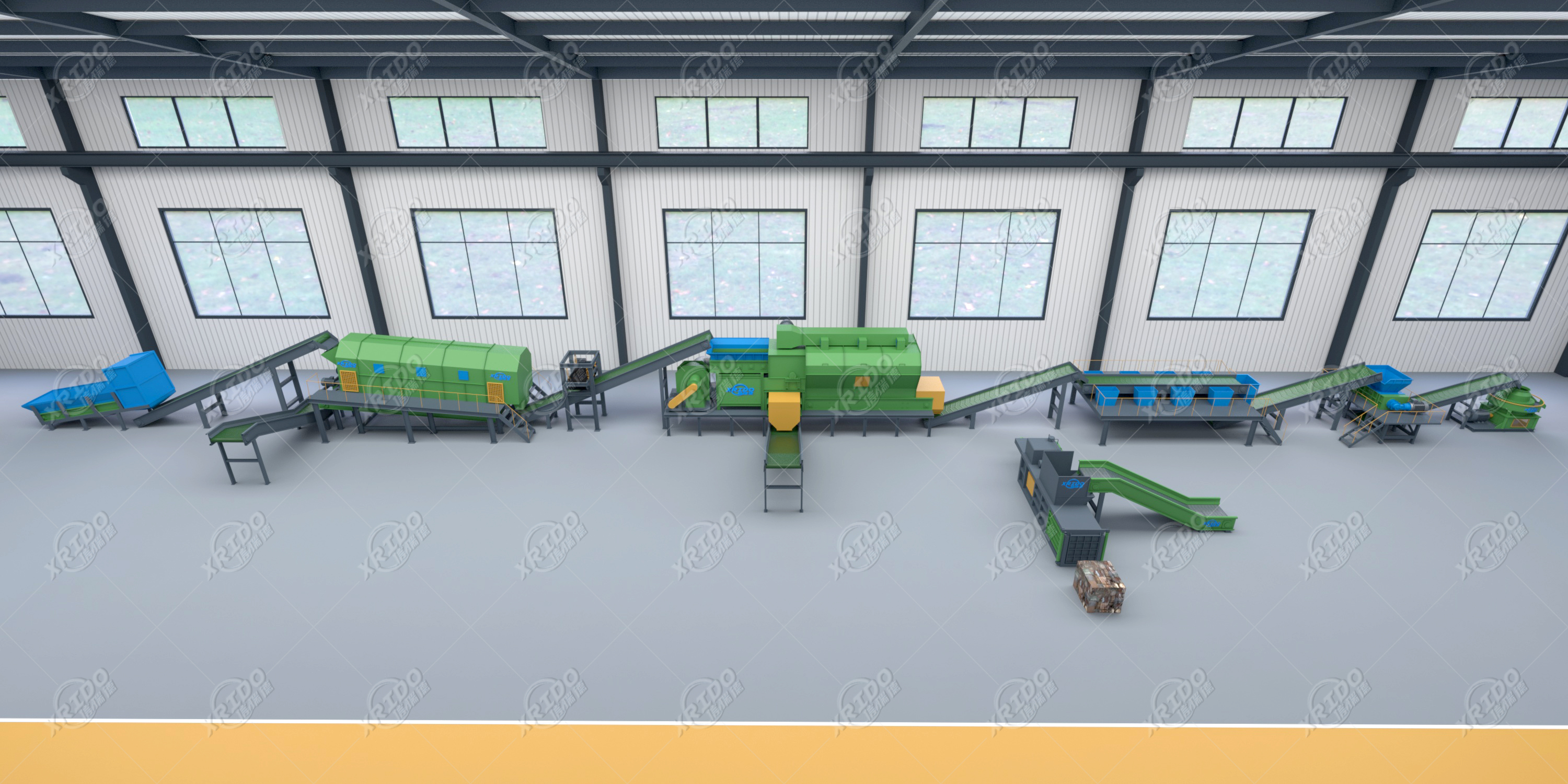

Common configuration sorting line

Domestic waste sorting line
Landfill waste sorting line

Sorting Material

Light material as: shopping bag, weaving bag, paper chip; Heavy material: mixed materials with large differences of density and specific gravity,like bottles, metal, stones, wood, organic matter, etc.

Advantage

1. Negative sorting, no dust exhaust in air.

2. Wind speed controlled by VFD to satisfy different material separating, including the wet material.

3. Modular designed, good performance, low maintenance.

4. It takes the double blower and settle to sort the heavy, light, and middle light material.

5. Less spare part, lower time of maintenance.

6. Integrated design of electronic control,plug and play.

Air Separator Parameter

Model

Capacity
 (t/h)

Power
(kw)

The Details  of Power
(kw)

RDL-600

20

26.7

7.5+5.5+5.5+3+3+2.2

RDL-800

40

37

11+7.5+7.5+4+4+3

RDL1000

60

44

15+7.5+7.5++5.5+5.5+3

RDL-1200

80

55.5

18.5+11+11+5.5+5.5+4

RDL-1400

100

59

22+11+11+5.5+5.5+4

RDL-1600

120

79

30+15+15+7.5+7.5+4
