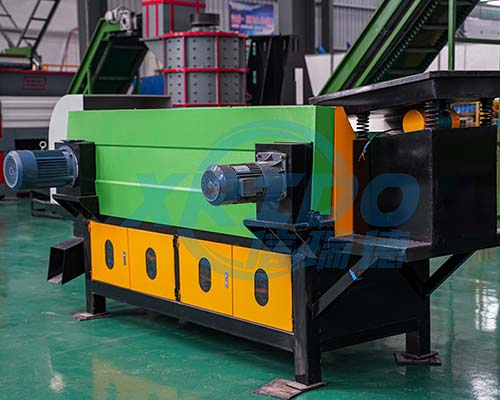

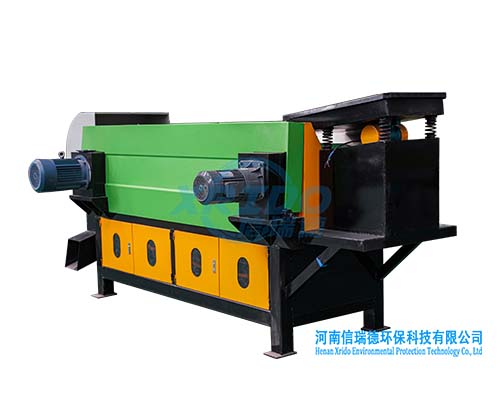

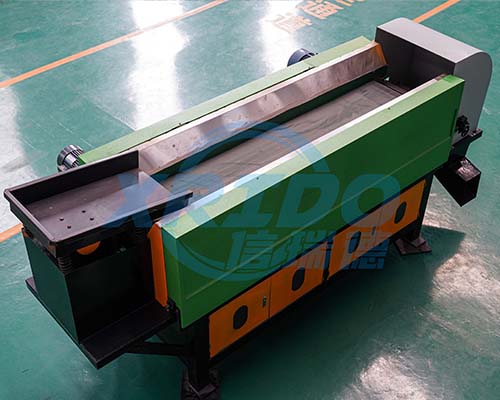

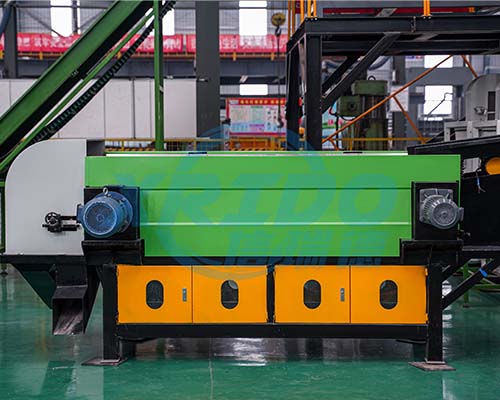

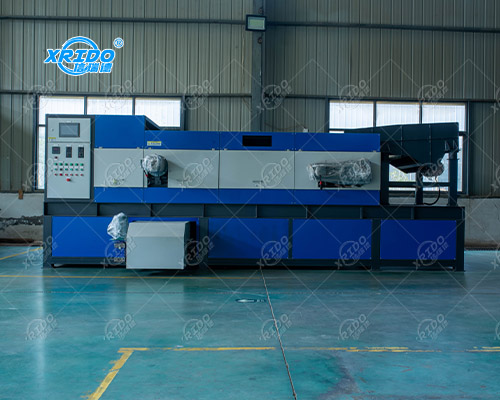

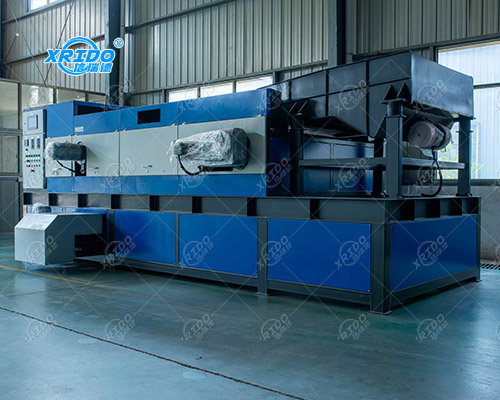

Eddy Current Separator Machine

The eddy current separator is used to separate a large amount of iron, copper, aluminum, magnesium, zinc and other non-ferrous metals and stainless steel contained in scrap steel scrap.

Separation of non-ferrous metals from a mixture.



Product Introduction

Eddy current sorting is an effective method for recovering non-ferrous metals. It has the advantages of excellent sorting effect, strong adaptability, reliable mechanical structure, light structure, strong repulsive force (adjustable), high sorting efficiency and large processing capacity, which can separate some non-ferrous metals from electronic waste. In the electronic waste recycling production line, it is mainly used to sort non-ferrous metals such as copper and aluminum from the mixture materials, and can also be promoted and applied in the field of environmental protection, especially in the non-ferrous metal recycling industry.

Applications: Non-Ferrous Metal Recycling

♦Metal sorting machine for materials:♦Sorting metal aluminum from PET flakes;

♦Collecting non-ferrous metals from the scrap material of the scrapping plant;

♦Separating and collecting aluminum and copper from aluminum-copper foundry sand and smelting ash;

♦Remove the aluminum cap from the glass bottle and sort the aluminum wire and aluminum alloy parts;

♦Collecting aluminum and copper from the mass;

♦Collecting non-ferrous metals from the incinerated printing plates

♦Sorting and collecting aluminum alloy cans from municipal waste;

♦Separating plastic and metal aluminum from broken aluminum alloy and aluminum-plastic doors and windows;

♦Separating metal and rubber from automotive seals;

♦Sort out non-ferrous metals from large pieces of crushed materials such as used cars, used appliances, and game consoles.

      TECHNICAL DATA



      Model Belt width Motor power(kw) Dimension(mm) Weight
      Rotor motor Belt motor Vibrating feeder Length Width Height Kgs
      ECS-30A 300 2.2 0.75 0.12+0.12 2080 1117 1057 900
      ECS-40A 460 3 0.75 0.12+0.12 2080 1357 1100 1100
      ECS-65A 650 4 1.5 0.25+0.25 3300 1500 1200 1200
      ECS-80A 800 4 1.5 0.25+0.25 3300 1700 1200 1400
      ECS-100A 1000 5.5 2.2 0.25+0.25 3300 1900 1200 1600
      ECS-120A 1200 5.5 2.2 0.55+0.55 3300 2000 1200 1800
      ECS-140A 1400 5.5 2.2 0.75+0.75 3300 2130 1587 2100
      ECS-160A 1600 5.5 2.2 0.75+0.75 3420 2300 1200 2200
      ECS-180A 1800 5.5 2.2 0.75+0.75 3300 2700 1200 2800
