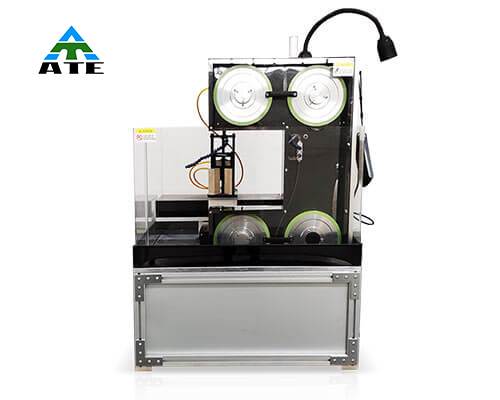

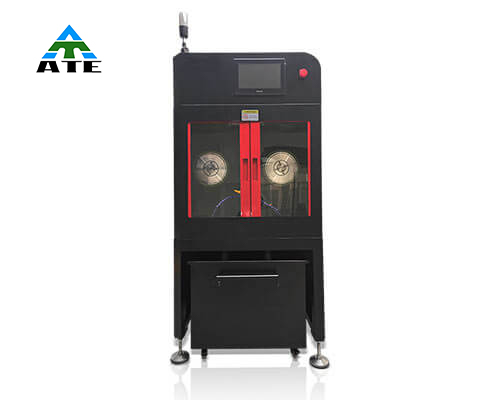

Endless diamond wire cutting machine is suitable to cut almost all kinds of material such as Glass, Rock, Jade, Silicon, Graphite, Sapphire, Metal, Gemstone, Quartz, Ceramics and so on, Especially for Cutting High-value Hard Brittle Materials.
Tel:
+86-19037177788Whatsapp:
+8619037177788
1, For the cutting of precious materials such as emerald, crystal, malachite, meteorite. The cutting kerf is small and the cutting speed is fast.It is suitable for the processing of various bracelets, pendants and annular section.
2, NdFeB, ferrite, samarium cobalt, alnico and other metal and non-metallic magnetic materials processing, the equipment has high safety, simple operation, large single cutting volume, whoes effiency is several times that of ID saw.
3, The cutting speed of crystal materials such as optical glass is fast, and the cutting surface is smooth and flat, replacing grinding with cutting.
4, Universities,enterprises,research institutes that need to cut a large number of new materials. This is a small equipment with fast cutting speed, high cutting precision and low material loss.
In addition, our cutting equipment can also be used for cutting Various metal and non-metallic composite materials, glass, rock, jade, monocrystalline silicon, silicon carbide, ceramics Epoxy board and other materials, especially suitable for cutting high priced and easily broken high hard brittle materials!lf you have material cutting needs, you can contact us!
Materials diamond wire loop cut: Sapphire, Glass, Artificial crysal, Silicon, Magnetics, New material, Gem-stone, Ultrathin marble, Granite, Foamed aluminium, Rock wool, Foam cement, Ceramic, Graphite, Tire, Hollow brick, Corrugated paper, etc.
| Diamond Wire Loop Parameters | ||||||
|
Outer Diameter (mm) |
Core Wire (mm) |
Grain Size EN |
Tensile Strength (N) |
Recommend Loop Length (mm) |
Max Loop Length (mm) |
Cooling |
| 0.3 | 0.24 | D25 | 60-80 | 1000-3000 | 30000 | Dry/Wet |
| 0.35 | 0.24 | D46 | 60-80 | 1000-3000 | ||
| 0.45 | 0.3 | D46 | 80-100 | 1000-6000 | ||
| 0.5 | 0.36 | D76 | 100-120 | 1000-6000 | ||
| 0.6 | 0.39 | D107 | 100-120 | 1000-6000 | ||
| 0.8 | 0.51 | D126 | 180-200 | 1000-6000 | ||
| 1.8 | 1.2 | D213 | 200-300 | 2500-1000 | ||
| 2.5 | 2 | D213 | 300-400 | 2500-10000 | ||
