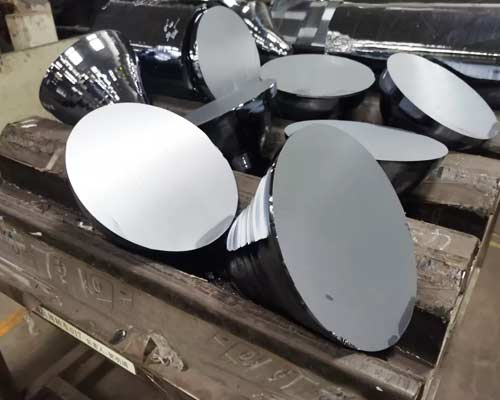

This silicon ingot cutting wire saw utilizes a cutting tool known as a circular diamond wire loop. It is a closed-loop diamond wire that can move in a single direction without the need for reversing. The circular diamond wire enables high linear speeds, reaching even up to 60 m/s. As a result, it allows for fast cutting speeds during silicon rod cutting, while maintaining superior cutting surface quality.
Tel:
+86-19037177788Whatsapp:
+8619037177788

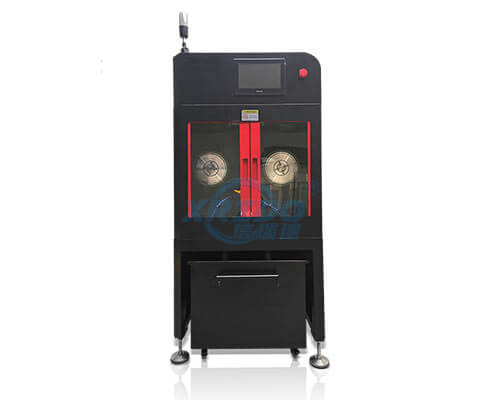

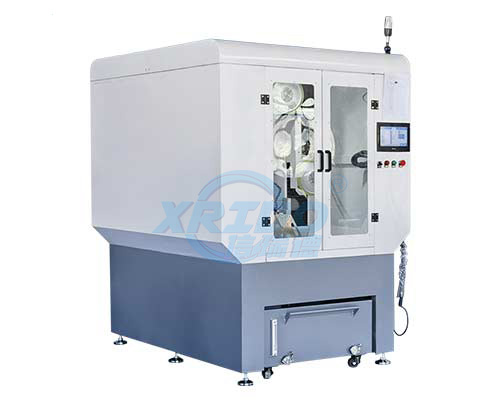

Diamond wire saw machine is made to do silicon cut off/cropping, it uses diamond wire loop/endless diamond wire loop as cutting blade,far more small than diamond band saw.And there has less possibility of silicon edge break which decreases defective product rate.
1,Vertical cutting method.
2,The surface is waterproof which can do wet cut.
3,The tensioning system adopts adaptive tensioning system, there is no need to make tension force calculation.
Materials diamond wire loop cut: Sapphire, Glass, Artificial crysal, Silicon, Magnetics, New material, Gem-stone, Ultrathin marble, Granite, Foamed aluminium, Rock wool, Foam cement, Ceramic, Graphite, Tire, Hollow brick, Corrugated paper, etc.

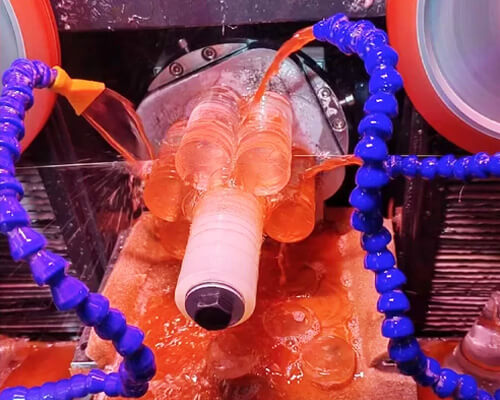

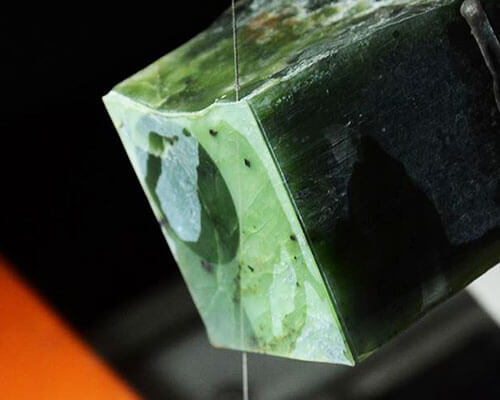

1, For the cutting of precious materials such as emerald, crystal, malachite, meteorite. The cutting kerf is small and the cutting speed is fast.It is suitable for the processing of various bracelets,pendants and annular section.
2, NdFeB, ferrite, samarium cobalt, alnico and other metal and non-metallic magnetic materials processing, the equipment has high safety, simple operation, large single cutting volume, whoes effiency is several times that of ID saw.
3, The cutting speed of crystal materials such as optical glass is fast, and the cutting surface is smooth and flat, replacing grinding with cutting.
4, Universities,enterprises,research institutes that need to cut a large number of new materials. This is a small equipment with fast cutting speed, high cutting precision and low material loss.
In addition, our cutting equipment can also be used for cutting various metal and non-metallic composite materials, glass, rock, jade, monocrystalline silicon, silicon carbide, ceramics Epoxy board and other materials, especially suitable for cutting high priced and easily broken high hard brittle materials!lf you have material cutting needs, you can contact us!
|
Diamond Wire Loop Parameters |
||||||
|
Outer Diameter (mm) |
Core Wire (mm) |
Grain Size EN |
Tensile Strength (N) |
Recommend Loop Length (mm) |
Max Loop Length (mm) |
Cooling |
|
0.3 |
0.24 |
D25 |
60-80 |
1000-3000 |
30000 |
Dry/Wet |
|
0.35 |
0.24 |
D46 |
60-80 |
1000-3000 |
||
|
0.45 |
0.3 |
D46 |
80-100 |
1000-6000 |
||
|
0.5 |
0.36 |
D76 |
100-120 |
1000-6000 |
||
|
0.6 |
0.39 |
D107 |
100-120 |
1000-6000 |
||
|
0.8 |
0.51 |
D126 |
180-200 |
1000-6000 |
||
|
1.8 |
1.2 |
D213 |
200-300 |
2500-1000 |
||
|
2.5 |
2 |
D213 |
300-400 |
2500-10000 |
||
