Metal Shredder

Capacity: 1-30t/h

Applicable materials: stainless steel, scrap steel, brass, scrap iron, thin metal, iron drums, car shells, car frames, sheet metal scraps, steel bars, briquettes, household appliances, and other scrap metals, etc.

Input size: customizable

Output size: customizable





Product Introduction

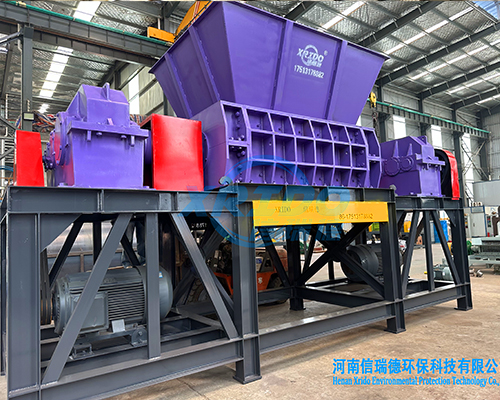

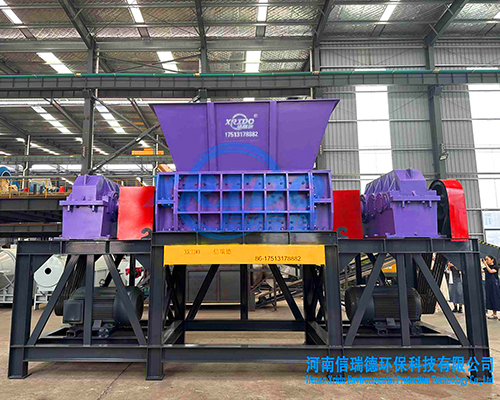

Metal shredder‌ is a device specially designed to shred scrap metal materials into smaller sizes for subsequent smelting and reuse. It is mainly composed of a shredding blade group, a carrying box, a box bracket, a feeding system, a power system and an electrical control system.





Working principle

The scrap metal shredder uses rotating knives to tear and shear metal materials into uniform small pieces. It greatly improves processing efficiency, shortens operation time, and reduces overall operating costs. It has wide applicability and flexibility in the metal recycling industry.

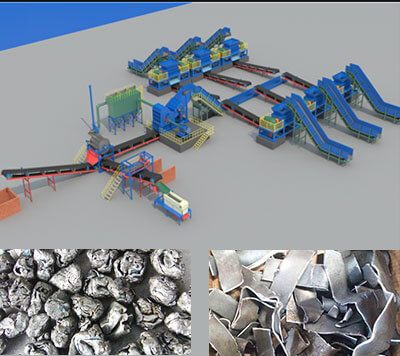

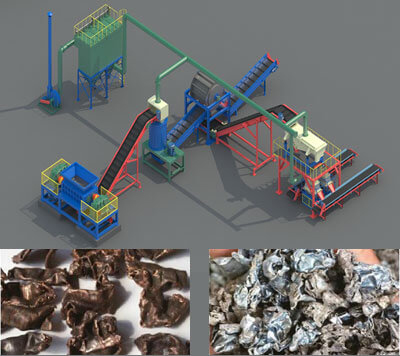

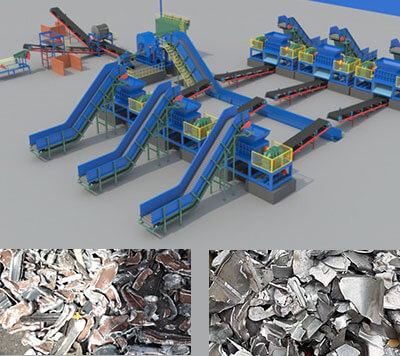

Metal Shredding&Crushing Recycling Plant

We can customize metal crushing and recycling production line for you.

Details

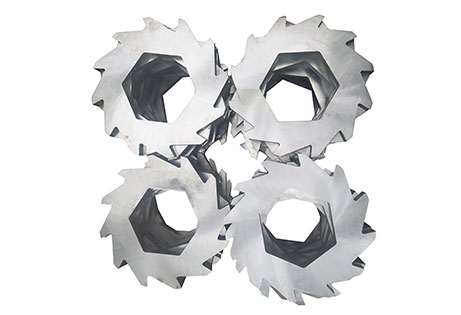

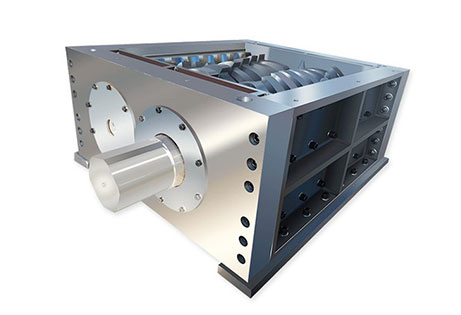

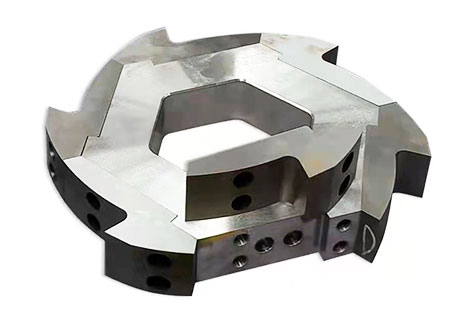

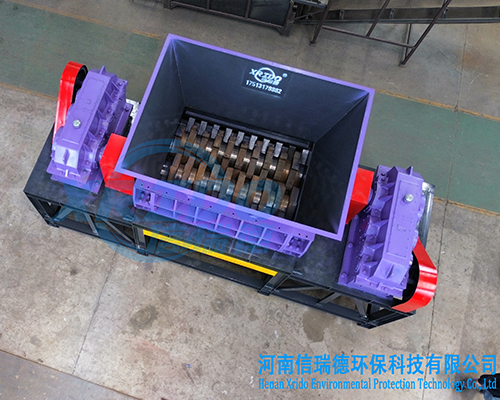

The blade of the metal shredder is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. The differential speed between the shafts has the functions of tearing, squeezing and biting. It is professionally designed for crushing metal. The design has the advantages of uniform discharge, large output and low noise. The electrical part adopts PLC control, with automatic detection of overload protection and other functions.

Metal Shredder Machine Parameter

Model

Size(mm)

Shredder room(mm)

Blads(mm)

Motor(k)

Weight(k)

XD-600

2800×1300×1850

600×480

200

11×2

2200

XD-800

3000×1300×1850

800×480

200

15×2

2500

XD-1000

3300×1900×2200

1000×690

300

22×2

5200

XD-1200

3600×2000×2200

1200×690

300

30×2

6400

XD-1500

4180×2100×2400

1500×850

550

55×2

9000

XD-1800

5800×2400×3300

1800×1206

550

75×2

13600

XD-2000

6400×2700×3500

2000×1490

600

90×2

20100

XD-2500

7500×3200×3800

2500×1800

600

110×2

25000
