Input Size : 200-2200mm
Output Capacity : 400-60000kg/h
Product Application : Waste tire treatment system, Waste rubber tire recycling industry
Applicable Material : truck tires, engineering car tires, Bicycle tires, motorcycle tyres, car tires, OTR tyre
Tel:
+86-19037177788Whatsapp:
+8619037177788
The rubber and steel wire in end-of-life tyres are valuable recyclable materials. Rubber can be used to make tyre-derived fuel (TDF) for power stations and cement kilns, to make granules for resilient paving, to make rubber powder for use in asphalt, to crack oil or to make recycled tyres, among many other uses.

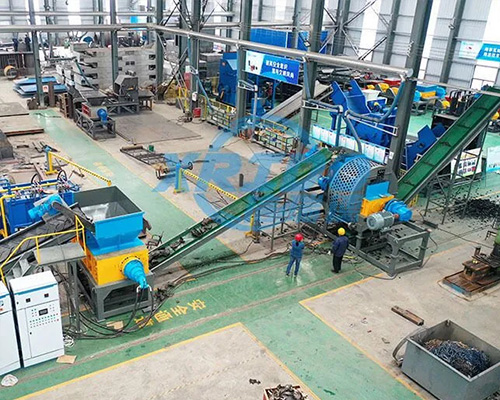

√Waste tire treatment system
√Waste rubber tire recycling industry
√truck tires, engineering car tires
√Bicycle tires, motorcycle tyres, car tires
Rubber shredder is driven by the independently double-roller.During the production the material will be pressed accordingly for automatic feed. During the production process of low speed and high torque,there is no spindle entanglement,or jammed equipment,thus improving the production efficiency, the equipment is suitable for various waste rubber products crushing .
1.Ultra-low rotational speed, huge large torque
2.Low noise,less dust
3.Optional motor or hydraulic motor;
4.According to the different nature of materials, customers can freely choose integral shredding blade or assembled detachable blade ;
5.Optional hydraulic forced feeding device, more efficient, fast tear material;
6.Double locking structure at both ends of the shaft head ensures the installation position of the blade and prevents axial displacement;
7.Microcomputer (PLC) automatic control, with the function of start ,stop ,reversal and overload automatic reversal control
Model |
Power (KW) |
Rotating speed (r/min) |
Dimensions L/W/H(mm) |
Crushing cavity size C/D(mm) |
Diameter of knife body (mm) |
XCS-56 |
15+15 |
6-20 |
2800×1300×1850 |
600×500 |
220 |
XCS-58 |
18.5+18.5 |
6-20 |
3000×1300×1850 |
800×500 |
220 |
XCS-710 |
30+30 |
6-20 |
3300×1900×2200 |
1000×700 |
320 |
XCS-812 |
37+37 |
6-20 |
3600×2000×2200 |
1200×800 |
400 |
XCS-815 |
45+45 |
6-20 |
4180×2100×2400 |
1500×850 |
450 |
XCS-918 |
75+75 |
6-20 |
5800×2400×3300 |
1800×900 |
500 |
XR-1020 |
90+90 |
6-20 |
6400×2700×3500 |
2000×1000 |
600 |
XR-1522 |
110+110 |
6-20 |
7800×3200×3800 |
2200×1500 |
800 |
Xrido is a manufacturing enterprise dedicated to the manufacture and sale machinery in the environmental protection industry.
