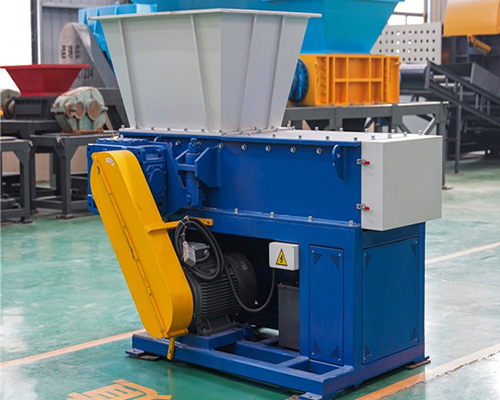

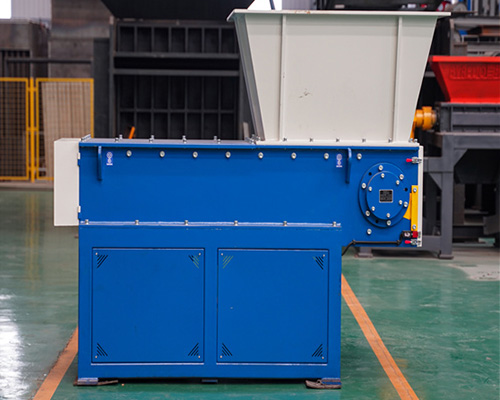

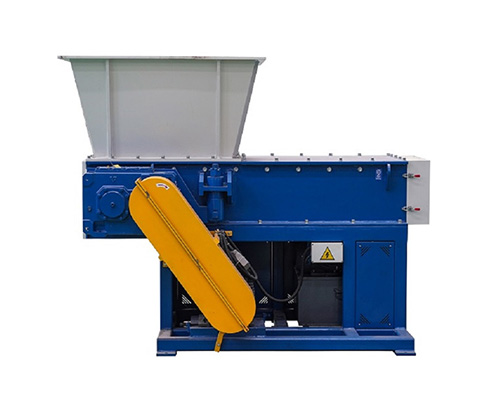

Single Shaft Shredder Machine

Product Description

The single shaft shredder is suitable for recycling a wide range of materials. It is an ideal machine for plastic, paper, fiber, rubber, organic waste, and a wide variety of materials. As per our customers' requirements, such as the input size of the material, capacity, and the final output size, etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against overloading and jamming.

Working Principle

Materials from the hopper into the chassis, push the tank under the impetus of the hydraulic cylinder to push the material to the rotating knife roll, rotary knife, and fixed knife to crush the material, crushed material falls through the screen, and then transported through the auxiliary conveyor To the next process or collection and packaging.

Materials through the feed system into the interior of the shredder box, carrying a shredding blade on the box, push the pusher to push the material to the vicinity of the blade, the material after tearing the blade tear, squeeze, shear and another integrated role, shredded into small pieces of material, discharged from the screen hole.

Features

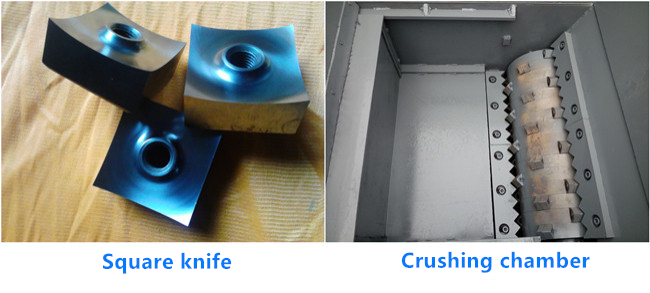

The blade is made of cold working die steel, which has good strength, high toughness and high cutting performance. The blade has four cutting edges, which can rotate 90 degrees after wear and continue to use.

External bearing design, waterproof and dustproof, prolong the service life of bearings.

Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsion.

Hard gear reducer, high transmission efficiency, strong load-bearing capacity, low noise..
