Capacity: 100-500 tons
Applicable: It can separate fine particle inert materials such as sand, stone and glass in domestic garbage and kitchen waste.
Tel:
+86-19037177788Whatsapp:
+8619037177788

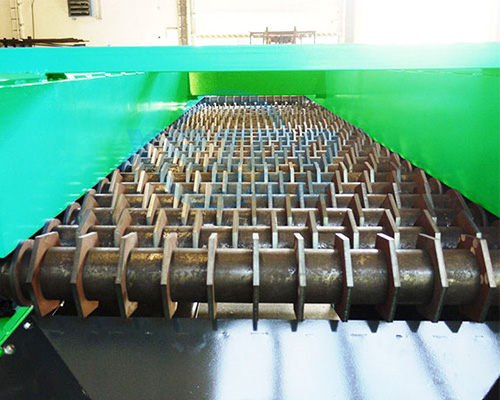

Star screen named after the star shaped rubber discs located on the shafts. The star discs have a certain gap length between each other. The materials with large dimensions move forward as the discs rotates and the ones with smaller dimensions fall through the gaps. We manufacture star screens according to required capacity and in different sizes.
It can separate fine particle inert materials such as sand, stone and glass in domestic garbage and kitchen waste.
1. The star screen is mainly used for the fine sorting of the material under the rolling screen of the bouncing sieve and the plate sieve.
2. The materials are scattered on the receiving surface of the rotating star claws and do jumping and rolling motions, and the inorganic materials smaller than the gap between the star claws are separated.
3. It can separate fine particle inert materials such as sand, stone and glass in domestic garbage and kitchen waste .
Capacity and detail customized by customer.
|
Model |
Motor Power(kw) |
Sieve Size(mm) |
Weight (t) |
Capacity(t/h) |
|
RDX-1204 |
7.5 |
φ20, φ50(Can be adjusted) |
4.5 |
10-30 |
|
RDX-1504 |
11 |
5.5 |
30-60 |
|
|
RDX-1804 |
15 |
6.5 |
60-100 |
Xrido is a manufacturing enterprise dedicated to the manufacture and sale machinery in the environmental protection industry.
