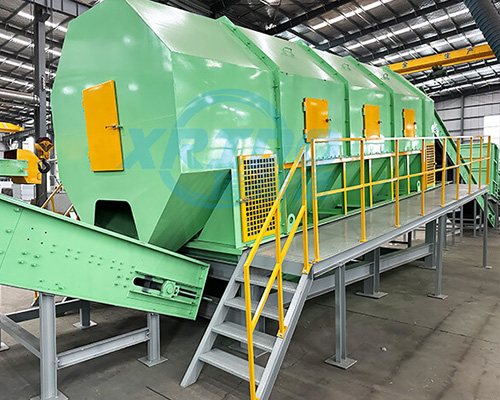

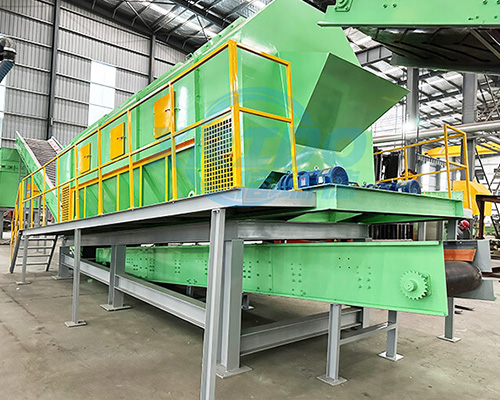

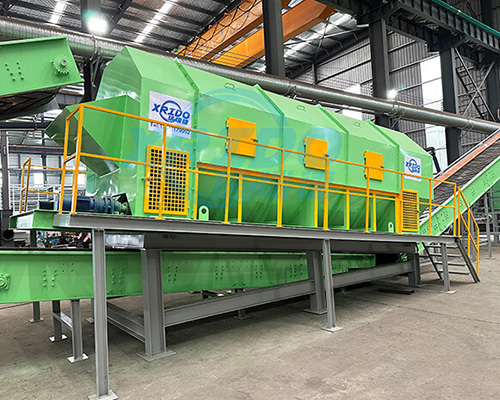

Trommel Screen

Capacity: 100-500 tons

Applicable: Household waste, construction waste, waste metal, mine industry, power plant, metallurgy etc.





Working Principle

The trommel screen is setting up at the front of MSW sorting machine.

It could separate different size of waste, and separate them into two types or multiple waste as different size of material.

Appliance

Its mainly used to the household waste, construction waste, waste metal, mine industry, power plant, metallurgy etc.

Trommel Screen Parameter

Dia.Of screen(mm)

Length (m)

Speed (r/min)

Capacity(t/h)

Bag break rate (%)

Rate of screening (%)

Power(kw)

RDG1200

4-8

0-20

≥20

60-90

70-90

4-5.5

RDG1500

5-9

0-17

≥40

60-90

70-90

5.5-7.5

RDG1800

6-10

0-14

≥50

60-90

70-90

7.5-11

RDG2000

8-11

0-13

≥60

60-90

70-90

11-15

RDG2200

9-12

0-12

≥70

60-90

70-90

15-18.5

RDG2500

10-15

0-11

≥80

60-90

70-90

18.5-22

RDG3000

10-15

0-11

≥100

60-90

70-90

22-30

send message

Xrido is a manufacturing enterprise dedicated to the manufacture and sale machinery in the environmental protection industry.
